Technical Overview
Power on/off indicator
Not applicable
Energy-saving position
No

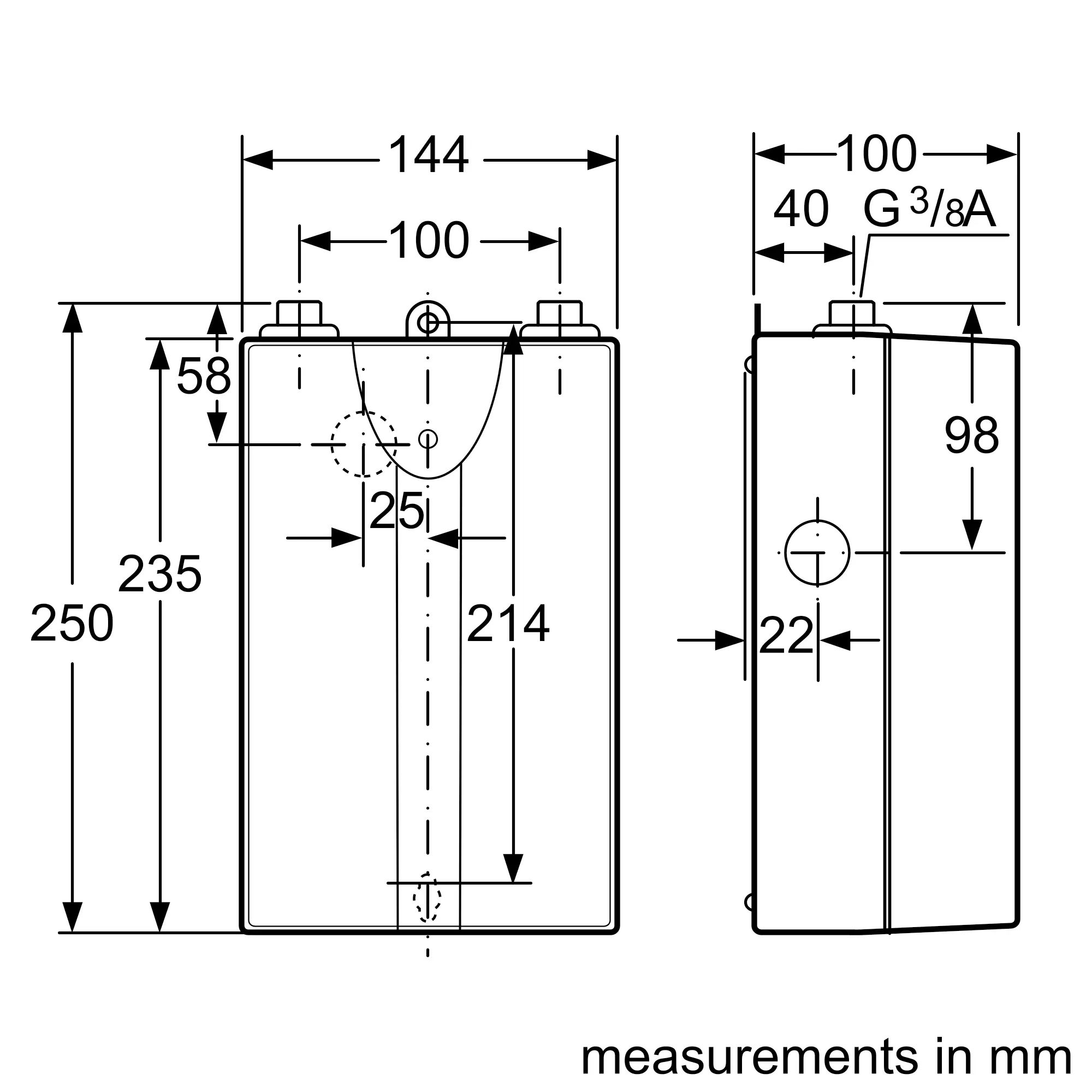

Dimensions
235x144x100 mm
Safety device
Safety temperature limitation
Specifications
Suggested cable cross-section(mm²): 4 mm2
With spray regulator to optimize the water spray
Hot water rating (38 °C) 3 l/min
Low switch-on flow rate of 2.3 l/min
Fixed connection, rating: 6 kW
Electrical connection 220 - 240 V/ 50 Hz / Fuse 32 A
Splash-proof standard IP24D
Dimensions (H x W x D): 23.5 x 14.4 x 10 cm
