Technical Overview
Power on/off indicator
Not applicable
Energy-saving position
Yes

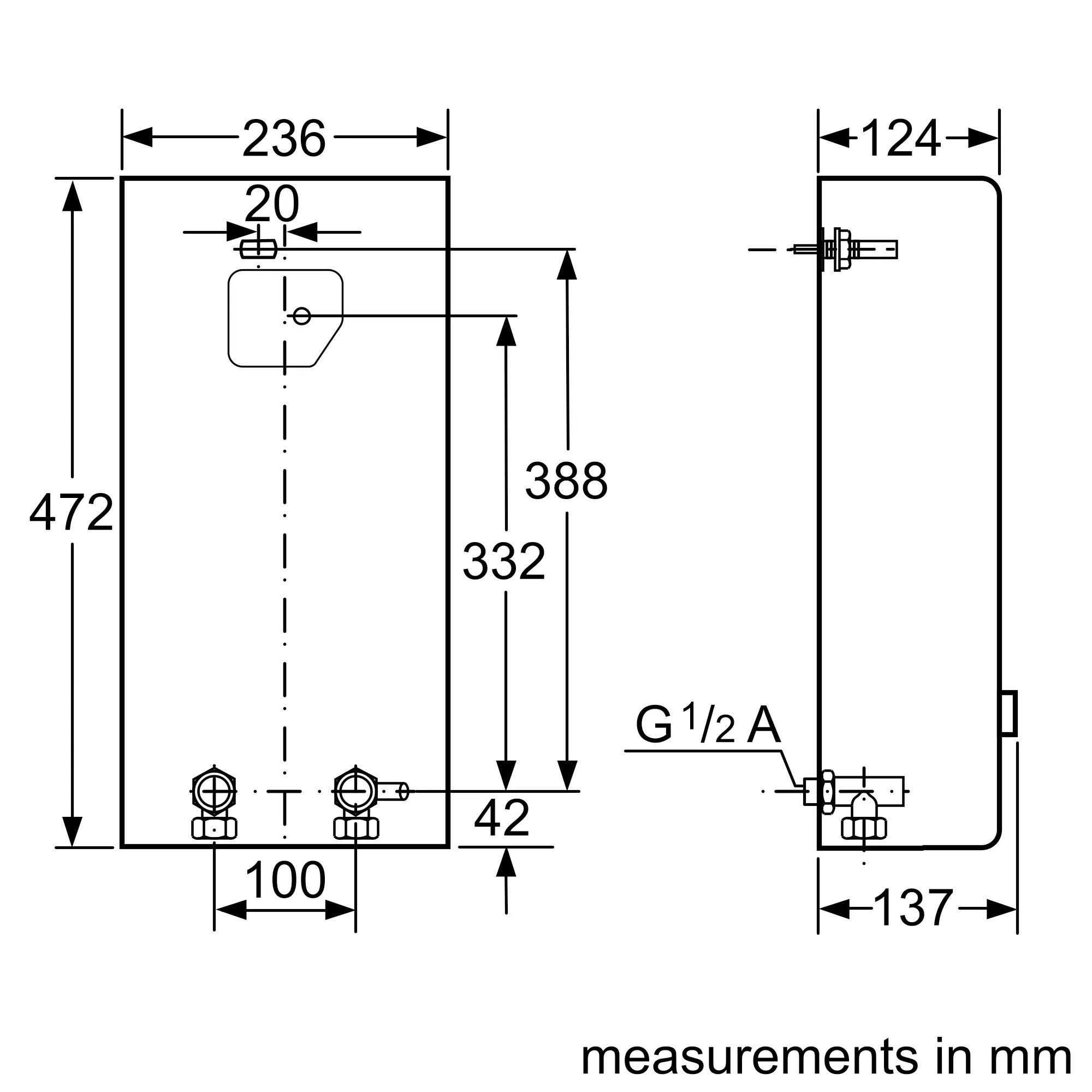

Dimensions
472 x 236 x 124 mm
Safety device
Safety pressure limiter, Safety temperature limitation
Specifications
Electrical connection : 400 V,18 kW
Hot water rating: (->60 °C) 5.4 l/min ; (->38°C) 9.9 l/min
Low switch-on flow rate of 4 l/min
Low switch on pressure of 0.7 bar
Minimum working pressure: 0.4 bar
Splash-proof standard IP25
CLICKFIX plus Assembly system saves time and money
Flexible connection pipes for easy connection to water mains
Back plate shortened for generous assembly space
Dimensions (H x W x D): 47.2 x 23.6 x 12.4 cm
EU energy label A
