iQ500 ceiling cooker hood 90 cm Stainless steelLR97CAQ50
LR97CAQ50
1 / 0
iQ500 ceiling cooker hood 90 cm Stainless steelLR97CAQ50
LR97CAQ50
Dealer Locator
Find a dealer near to you
iQ500 ceiling cooker hood 90 cm Stainless steelLR97CAQ50
LR97CAQ50
Dealer Locator
Find a dealer near to you
Technical Overview
Installation typology
Ceiling
Width
90 cm
cookConnect system
Yes
Noise level
56 dB(A) re 1 pW
climateControl sensor
No
Air circulation
Exhaust / Recirculation (Accessory available separately)
Max. air extraction
459 m³/h
Boost position air extraction
798 m³/h
Highlights
Awards
Specifications
Width
90 cm
Colour
Stainless steel
Installation typology
Ceiling
Air circulation
Exhaust / Recirculation (Accessory available separately)
Total power of the motors
160 W
Control panel
Via app
Number of speed settings
3-stage + 2 intensive
Max. air extraction
459 m³/h
Boost position air extraction
798 m³/h
Sound power at max. speed (2010/30/EC)
56 dB
Sound power boost (2010/30/EC)
68 dB
Max. recirculation
422 m³/h
Boost position output recirculating
565.0 m³/h
Sound power at max. speed (recirculation)
63 dB
Sound power boost (recirculation)
69 dB
Grease filter material
Washable stainless steel
Energy efficiency rating (2010/30/EU)
A
Total annual energy consumption
34.0 kWh/annum
Included user manuals
[DA, DE, ES, FI, FR, NL, NO, PT, SV]
Voltage
220-240 V

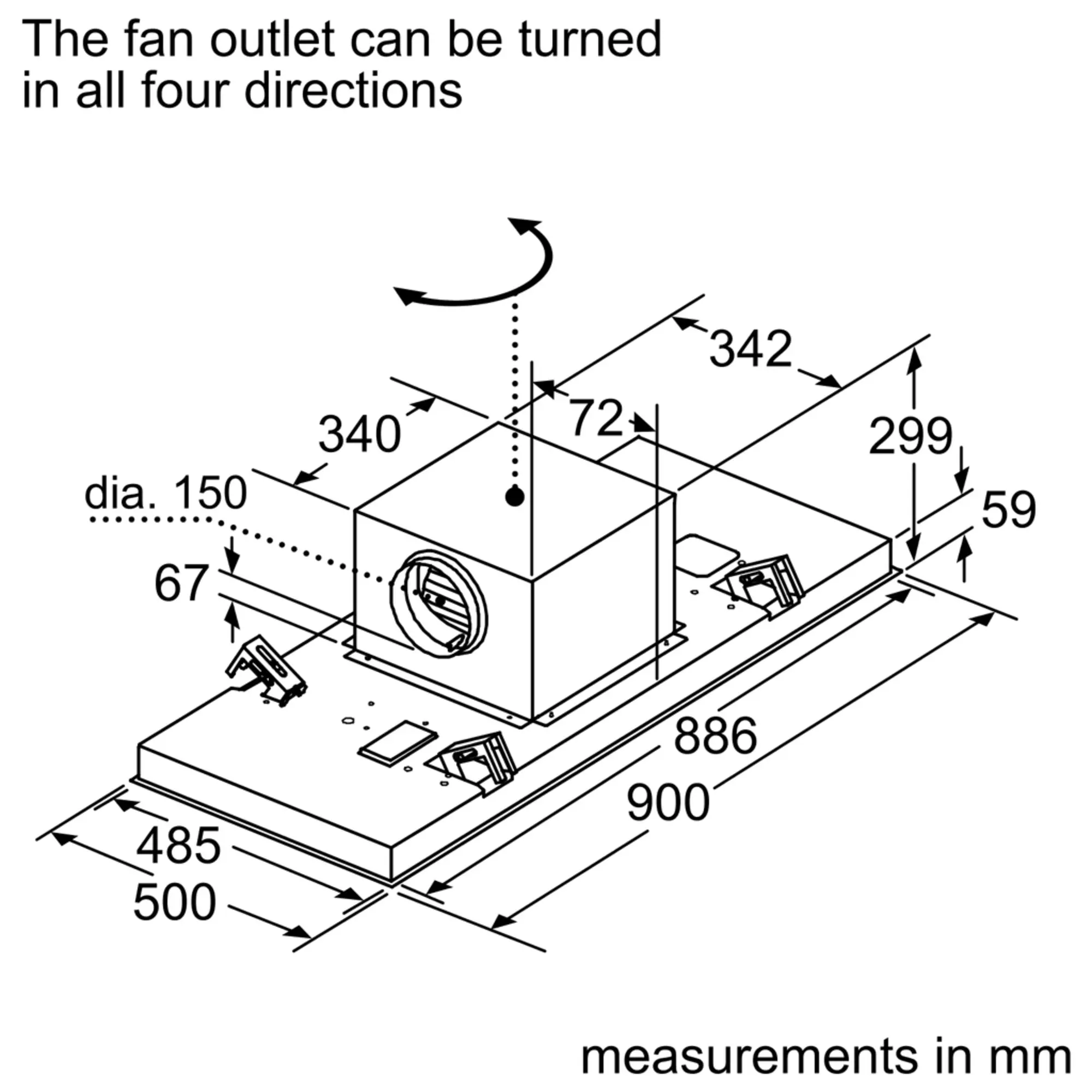

Height of the appliance
300 mm
Width of the appliance
900 mm
Depth
500 mm
Dimensions of the packed product (HxWxD)
590x1040x620 mm
Height of the chimney
GENERAL.N_A mm
Minimum distance above an electric hob
650 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
19.7 kg
Handle bar
Not applicable
Appliance height exhaust air max
300 mm
Appliance height exhaust air min
300 mm
Appliance height recirculating max
300 mm
Appliance height recirculating min
300 mm

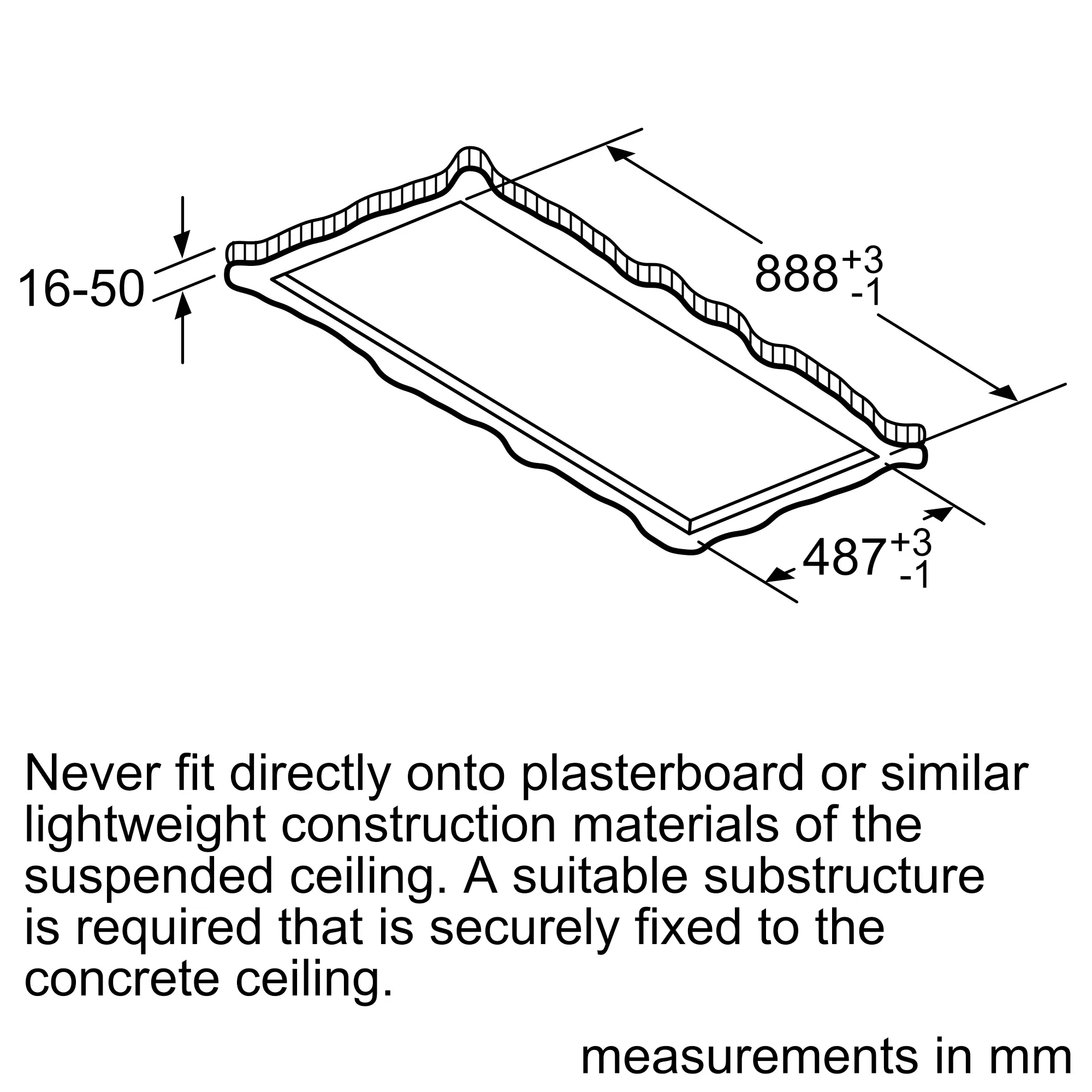

Maximum width for installation
888 mm
Minimum width for installation
888 mm
Depth for installation
487 mm
1 / 0
climateControl sensor
No
iQdrive
Yes
Exremely silent
Yes
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
Yes
Type of lamps used
None
Number of lights
4
Total power of the lamps
GENERAL.N_A W
Total luminance
659 lux
Color temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Light color tunable by Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: From time to time we provide updates to preserve the functionalities of your connected home appliance (especially security updates). You know such updates from your smartphone. If you want to be informed when such an update is ready for your Home Connect enabled appliance, please proceed as follows: Download the Home Connect App. Register and connect the appliance in the App. More information will then be available in the Home Connect App.,Footnote 2: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes
Home Connect Features
iService Remote, Remote Monitoring and Control
cookConnect system
Yes
Intelligent hood automatic
No
