1 / 2
Technical Overview
Power on/off indicator
LED
Connection Rating
18 W
Energy-saving position
No

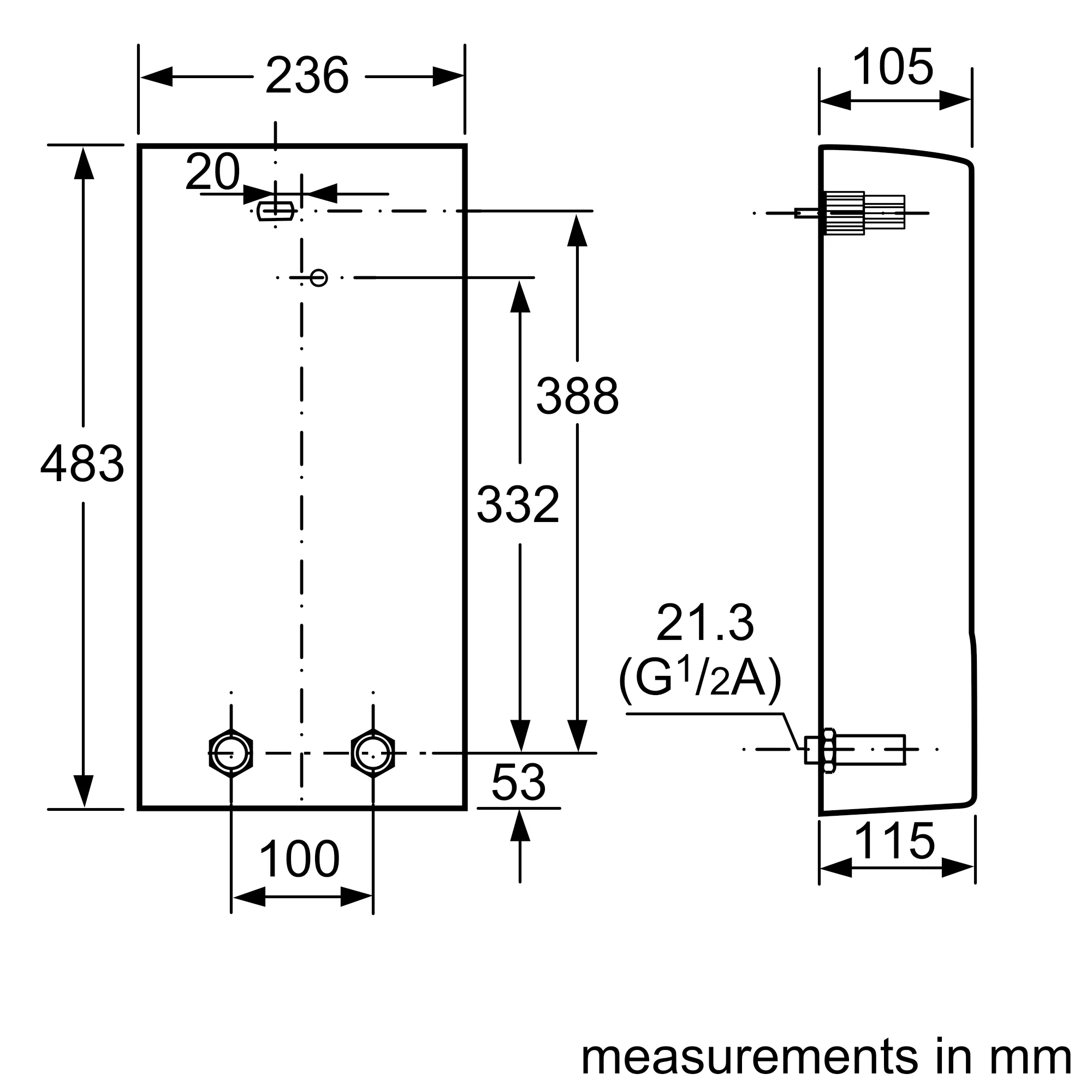

Dimensions
483 x 236 x 122 mm
Specifications
Hot water rating: (->60 °C) 5.3 l/min (18kW) ; (->38°C) 9.8 l/min (18kW)
Min. fuse protection: 32 A
Suggested cable cross-section: 4 mm2
Heat setting(s) : 55 °C- 55 °C
An electronic security concept with air bubbles recognition integrated
Low switch-on flow rate of 2.5 l/min
Minimum working pressure: 0.25 bar
Splash-proof standard IP25
Flexible connection pipes for easy connection to water mains
CLICKFIX plus assembly technology for the fastest assembly saves time and money
Dimensions (H x W x D): 48.3 x 23.6 x 12.2 cm
EU energy label A
Saving energy and water up to 20% compared with hydraulic continuous-flow water heaters
