Suggested cable cross-section: 6 mm2

Min. fuse protection: 32 A

Water pipe connection thread ["]:21,3 / G1/2A

An electronic security concept with air bubbles recognition integrated

CLICKFIX plus assembly technology for the fastest assembly saves time and money

Easy installation in place of old systems with power supply connection above and below possible

Back plate and heating block can be separated using a handle for assembly

Flexible connection pipes for easy connection to water mains

EU energy label A

Hot water rating: (->60 °C) 7.1 l/min, 6.2 l/min ; (->38°C) 13 l/min, 11.6 l/min

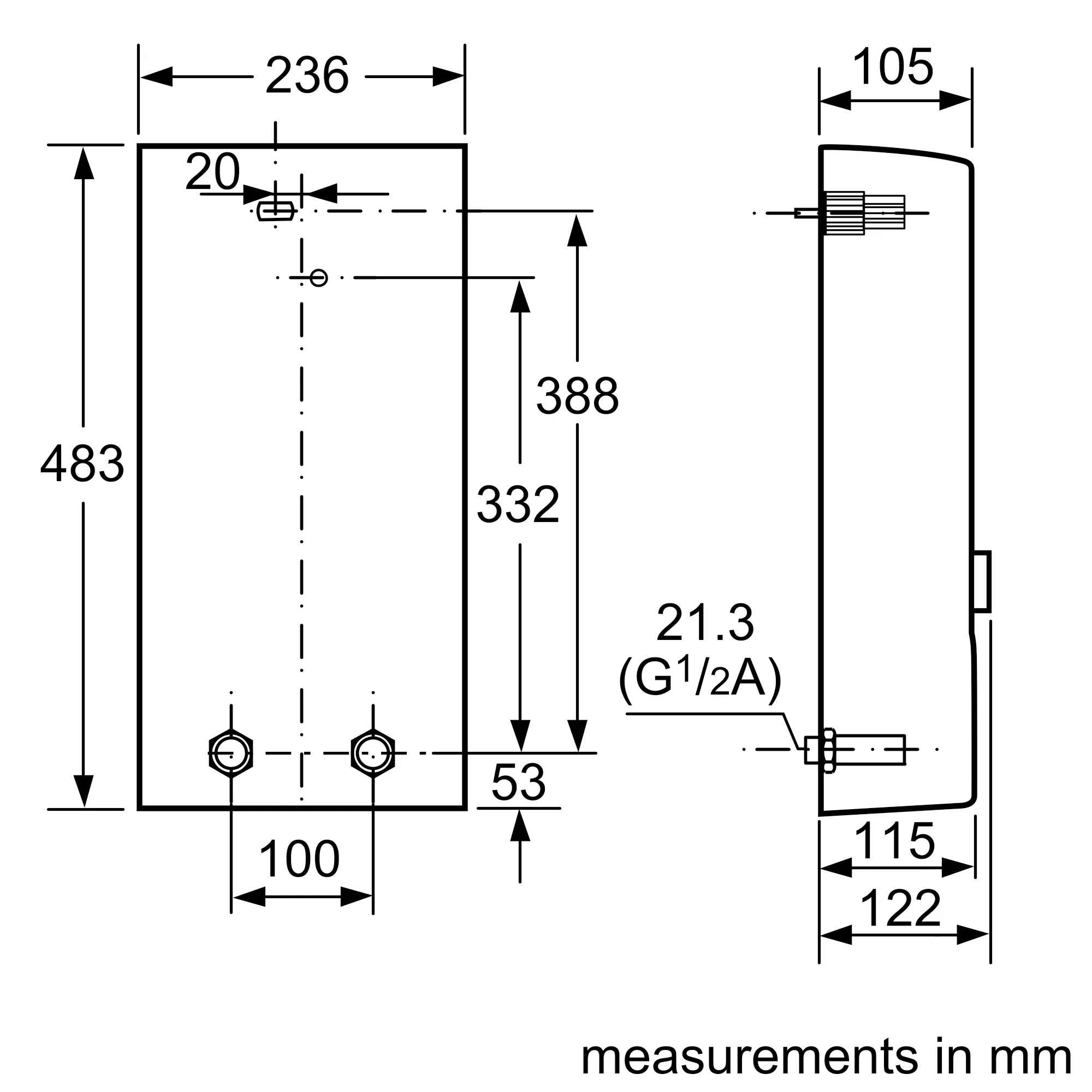

Dimensions (H x W x D): 48.3 x 23.6 x 12.2 cm

Heat setting(s) : 30 °C- 60 °C

Splash-proof standard IP25

Low switch-on flow rate of 2.5 l/min
