Technical Overview
Power on/off indicator
Not applicable
Energy-saving position
Yes

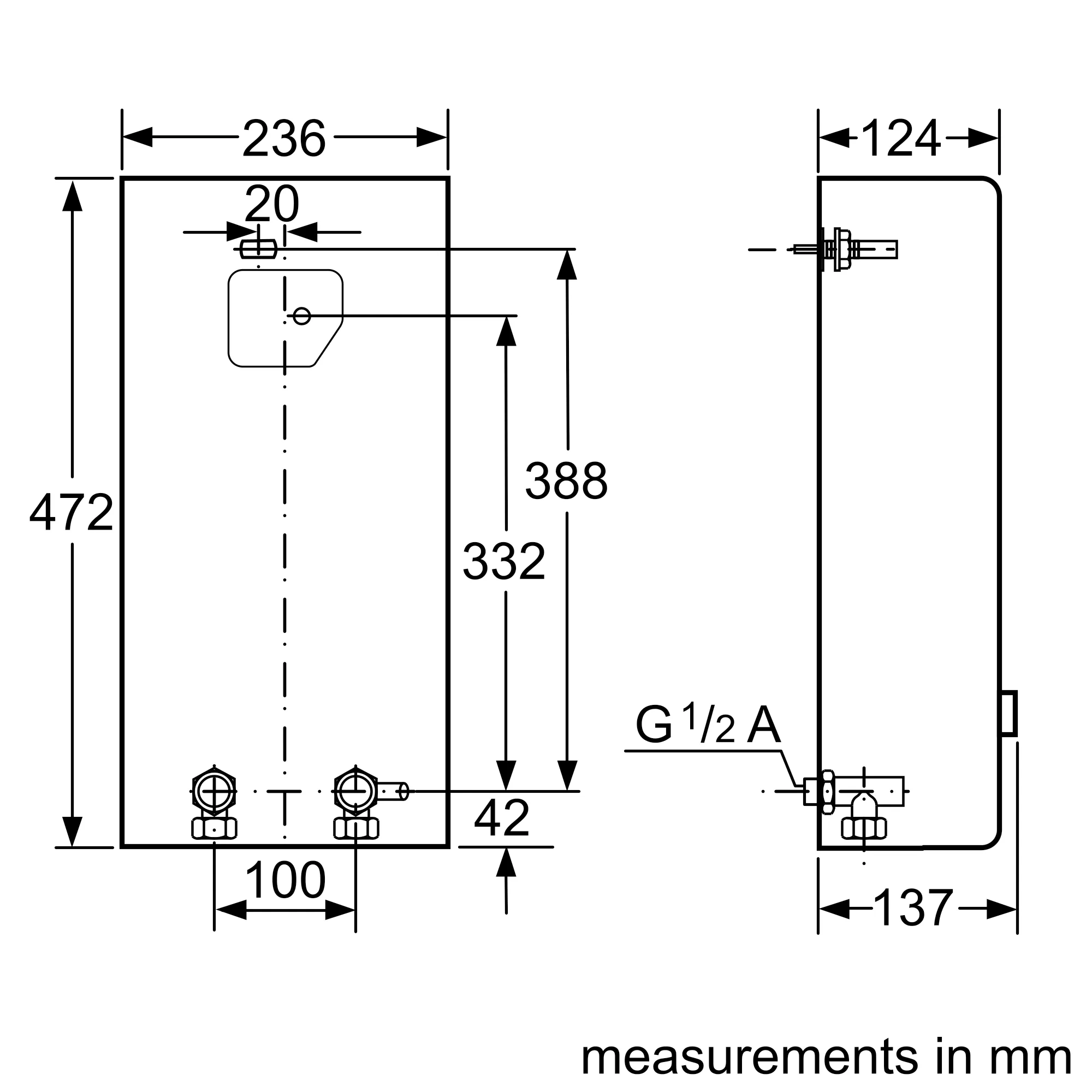

Dimensions
472x236x124 mm
Safety device
Safety pressure limiter, Safety temperature limitation
Specifications
CLICKFIX plus Assembly system saves time and money
Low switch-on flow rate of 4 l/min
Low switch on pressure of 0.7 bar
Rating selector switch e / II , 12 KW / 18 KW
Splash-proof standard IP25
Dimensions (H x W x D): 47.2 x 23.6 x 12.4 cm
Hot water rating (->60 °C) : (18kW)5.4 l/min (21kW); (->38°C) : (21kW)9.9 l/min(18kW)
Electrical connection : 400 V,18 kW
